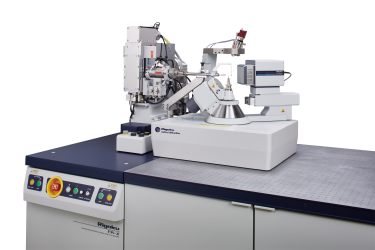

The XtaLAB Synergy Custom is the fully flexible single crystal X-ray diffractometer for laboratories requiring a bespoke solution for their unique crystallography applications. As its name suggests, you are able to customize to your own design, a system using a range of high quality components dedicated for single crystal X-ray diffraction.
Configuration
The XtaLAB Synergy Custom is where you will find Rigaku’s highest flux FR-X microfocus source delivering 2.5 times higher flux compared to the MicroMax-007 HF rotating anode X-ray generator. It may be configured to be dual port to accommodate a second X-ray diffractometer, perfect for high-throughput laboratories. It is possible to configure your system with any of Rigaku’s X-ray sources, from microfocus sealed tubes to rotating anodes, to give the ultimate in flexibility.
XtaLAB Synergy Custom systems can be configured with the popular and reliable four-circle kappa goniometer which is compatible with a wide range of detectors including the HyPix-6000HE and other Hybrid Photon Counting (HPC) X-ray detectors e.g. PILATUS and EIGER detectors.
HPC X-ray detectors are close to an ideal detector for a number of reasons:
- Photon counting detectors that directly detect X-ray photons without the need the intermediate step of converting X-ray photons to light with a phosphor
- High dynamic range and fast readout speed
- Extremely low noise
- An ideal point spread function of a single pixel
These combined features, along with shutterless data collection, means that you can collect more accurate data faster. As a result, the XtaLAB Synergy Custom single crystal x-ray diffractometer offers outstanding performance for your diffraction experiments.
Select your accessories for the XtaLAB Synergy Custom diffractometer, including the automated sample changing robot, the ACTOR or the XtalCheck for in-situ screening of macromolecules. The extra space around the goniometer enables tools such as a dewar or a microscope to be brought close into the goniometer for speedy mounting of samples.
