ATN01导波管固定和可变油管
-
- ATN01导波管固定和可变油管
- KAGAKU
- ATN01
- 日本
- 现货
产品详细介绍

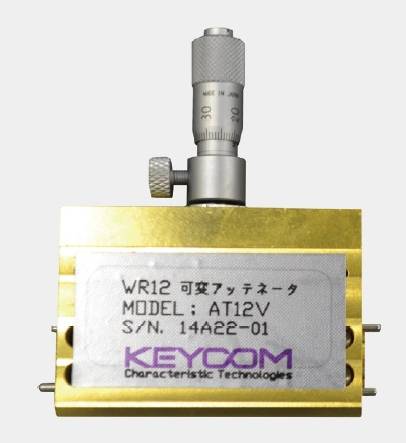

マイクロメーターにより、30dBまでの減衰量を変えることが可能です
固定アッテネータ
| Part No. | Waveguide | Flange | Frequency GHz | VSWR MAX |
| AT42-○○ | WR-42 | UG-595/U | 18.0-26.5 | 1.15 |
| AT28-○○ | WR-28 | UG-599/U | 26.5-40.0 | 1.15 |
| AT22-○○ | WR-22 | UG-383/U | 33.0-50.0 | 1.15 |
| AT19-○○ | WR-19 | UG-383/U | 40.0-60.0 | 1.15 |
| AT15-○○ | WR-15 | UG-385/U | 50.0-75.0 | 1.15 |
| AT12-○○ | WR-12 | UG-387/U | 60.0-90.0 | 1.15 |
| AT10-○○ | WR-10 | UG-387/U | 75.0-110.0 | 1.15 |
| AT8-○○ | WR-8 | UG-387/U | 90.0-140.0 | 1.2 |
| AT6-○○ | WR-6 | UG-387/U | 110.0-170.0 | 1.2 |
○○:3dB, 6dB, 10dB, 20dB, 30dB
可変アッテネータ
| Part No. | Waveguide | Flange | Frequency GHz | Attenuation | VSWR MAX |
| AT42V | WR-42 | UG-595/U | 18.0-26.5 | ~30dB | 1.15 |
| AT28V | WR-28 | UG-599/U | 26.5-40.0 | ~30dB | 1.15 |
| AT22V | WR-22 | UG-383/U | 33.0-50.0 | ~30dB | 1.15 |
| AT19V | WR-19 | UG-383/U | 40.0-60.0 | ~30dB | 1.15 |
| AT15V | WR-15 | UG-385/U | 50.0-75.0 | ~30dB | 1.15 |
| AT12V | WR-12 | UG-387/U | 60.0-90.0 | ~30dB | 1.15 |
| AT10V | WR-10 | UG-387/U | 75.0-110.0 | ~30dB | 1.15 |
| AT8V | WR-8 | UG-387/U | 90.0-140.0 | ~30dB | 1.2 |
| AT6V | WR-6 | UG-387/U | 110.0-170.0 | ~30dB | 1.2 |
