Rigaku NANOPIX SAXS/WAXS measurement system is a new X-ray scattering instrument designed for nano-structure analyses. NANOPIX can be used for both small angle scattering (SAXS) and wide angle scattering (WAXS) measurements, which makes it possible to evaluate multi-scale structures from sub-nanometer to nano-order (0.1 nm to 100 nm). It achieves the highest level of small angle resolution (Qmin to 0.02 nm-1) for a laboratory SAXS instrument.
小角度广角X射线散射仪
-
- 小角度广角X射线散射仪
- KAGAKU
- NANOPIX
- 日本
- 现货
产品详细介绍

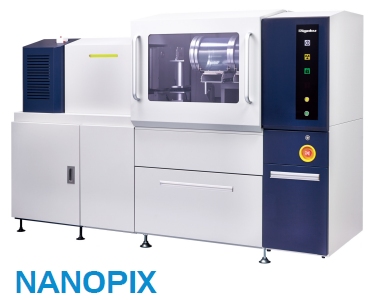

NANOPIX
Small angle X-ray scattering (SAXS)
Small angle X-ray scattering (SAXS) is a technique used to study nano-scale structures of atoms or molecules as well as their non-uniformity by measuring the diffuse scattering from unequal electron density areas. SAXS experiments are performed in a wide range of fields from R&D to quality control.
Small angle X-ray scattering (SAXS) is a technique used to study nano-scale structures of atoms or molecules as well as their non-uniformity by measuring the diffuse scattering from unequal electron density areas. SAXS experiments are performed in a wide range of fields from R&D to quality control.
SAXS/WAXS measurements for many applications
NANOPIX SAXS/WAXS measurement system is applicable to a variety of materials, such as: solids, liquids, liquid-crystals, or gels (with ordered and disordered structures). Diverse applications include: nano-particle size distribution analyses, three-dimensional protein molecule structure analyses, identification of molecular assembly or disassembly, and research of advanced materials, such as carbon fiber-reinforced plastics (CFRP).
NANOPIX SAXS/WAXS measurement system is applicable to a variety of materials, such as: solids, liquids, liquid-crystals, or gels (with ordered and disordered structures). Diverse applications include: nano-particle size distribution analyses, three-dimensional protein molecule structure analyses, identification of molecular assembly or disassembly, and research of advanced materials, such as carbon fiber-reinforced plastics (CFRP).
Ultra high performance SAXS/WAXS design
Rigaku NANOPIX SAXS/WAXS measurement system is configured with a high-brilliance, high-power point focus X-ray source, the OptiSAXS high-performance multilayer mirror, the ClearPinhole high-performance, low scattering pinhole slits, and the HyPix-3000 high-performance 2D semiconductor detector that enables detecting diffraction and scattering even from anisotropic materials. Optionally, the HyPix-6000 detector is also available for wide angle measurements, offering an expanded detection area by combining two detection modules. As _disibledevent="field-items">
Rigaku NANOPIX SAXS/WAXS measurement system is configured with a high-brilliance, high-power point focus X-ray source, the OptiSAXS high-performance multilayer mirror, the ClearPinhole high-performance, low scattering pinhole slits, and the HyPix-3000 high-performance 2D semiconductor detector that enables detecting diffraction and scattering even from anisotropic materials. Optionally, the HyPix-6000 detector is also available for wide angle measurements, offering an expanded detection area by combining two detection modules. As _disibledevent="field-items">
